Professional Handheld Digital Multimeter Low Power Display Data Holds Test

Name: Professional Handheld Digital Multimeter Low Power Display Data Holds Test
Brand: HD , OEM
Price: 1 USD

Wholesale Professional Handheld Digital Multimeter Low Power Display Data Holds Test from china suppliers

Place of Origin : Shenzhen ,China

Brand Name : HD , OEM

Certification : CE

Model Number : HD9205E

MOQ : 500pcs

Price : Negotiation

Packaging Details : Color Box

Delivery Time : 25-30 Days

Payment Terms : T / T ,Paypal , West Union

Supply Ability : 1000 PCS/Week

Contact Now

Professional Handheld Digital Multimeter Low Power Display Data Holds Test

Quik Details :

Measuring Current Range : 200uA-20A
Measuring Voltage Range : 200mV-1000V
Measuring Resistance Range : 200Ω-20MΩ
Resistance : 200Ω-20MΩ
Capacitance : 20nF -200uF

General Characteristic :

Power supply : 9V(6F 22)
Color : Ron-Grey + Red
Weight : 274g(including batteries)
Dimension : 182*84*36mm
Accessories : Test lead ,manual ,battery
Standard inner package : Color box
Standard package quality : 60 sets
Outer packing size　:43*32*58cm
Standard packing gross weight　:23.5kg

Description :

HD9205E manual measuring-range digital multimeter designs excellent,the appearance is novel and natural .The large liquid crystal screen dresses up the background clearly and cause the demonstration to be artistic .
The function is complete and it is easy to operate. Besides the triode test , all measurements are surveyed by the multimeter subtus four test inputs jack,namely use the test lead to test.Facilitates your operation and strengthen the security . PTC temperature sensing component is connected within the VW jack input terminus, which has fully protected the key part of the multimeter --Function / range switch and improved security and lengthened the use life-span greatly.

Specification :

Basic function	Measurement range	Basic accuracy
DC voltage	200mV/2V/20V/200V/1000V	±(0.5%+3)
AC voltage	2V/20V/200V/750V	±(1.0%+3)
DC current	2mA/20mA/200mA/2A/20A	±(1.5%+2)
AC current	2mA/20mA/200mA/2A/20A	±(2.0%+3)
Resistance	200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ	±(1.0%+5)
Capacitance	20nF/200nF/2uF/200uF	±(4.0%+3)
hFE test	V
Diode test	V
Continuity buzzer	V
Low power display	V
Auto power off	V
Data hold	V
Max display	1999

Our Service :

24 hours service.
15 well-educated and experienced staff
4 QC ensure every order made strictly as per clients' requests.
Over 50 factories supported with positive relationship.

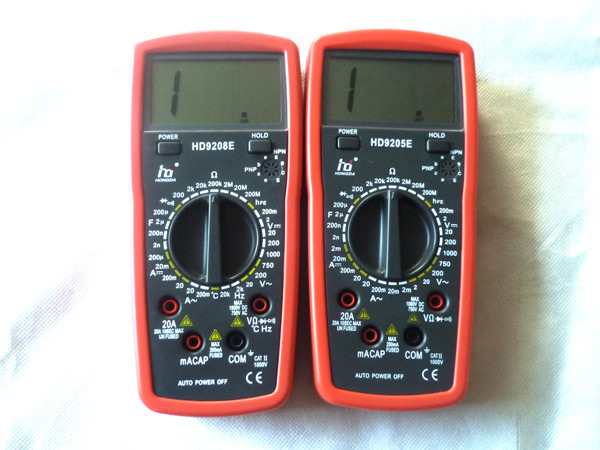

Product Pictures :

Product Tags:

portable digital multimeter

manual digital multimeter

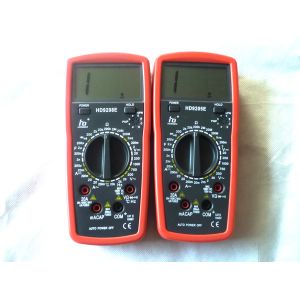

Professional Handheld Digital Multimeter Low Power Display Data Holds Test Images
