Diode HFE Handheld Portable Digital Multimeter with auto power off
Quik Details
Measuring Capacitance : 2nF-200uF
Measuring Current Range : 200mA-20A
Measuring Voltage Range : 200mV-1000V
Measuring Resistance Range : 200Ω-20MΩ
Diode test / hFE test / Continuity test / Low power display / Auto power off
Description
DT9205 is a kind of digital multimeter which has stable performance, high reliability. The whole circuit design with large scale integrated circuit, A/D converter as the core, and matches by the function of overload protection.
This meter can be used to measure dc voltage and ac voltage, dc current and ac current, resistance, capacitance, diode, triode, on-off testing, temperature, frequency, firewire recognition, etc.It is a superior performance tool which is laboratory, factory radio enthusiasts and ideal tool of the family.
Specification
|
Basic function
|
Measurement range
|
Basic accuracy
|
|
DC voltage
|
200mV/2V/20V/200V/1000V
|
±(0.5%+3)
|
|
AC voltage
|
200mV/2V/20V/200V/750V
|
±(0.8%+3)
|
|
DC current
|
20uA/200uA/2mA/20mA/200mA/2A/20A
|
±(0.8%+2)
|
|
AC current
|
20uA/200uA/2mA/20mA/200mA/2A/20A
|
±(1.0%+3)
|
|
Resistance
|
200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ
|
±(0.8%+3)
|
|
Capacitance
|
2nF/20nF/200nF/2uF/200uF
|
|
hFE test
|
V
|
|
Diode test
|
V
|
|
Continuity buzzer
|
V
|
|
Low power display
|
V
|
|
Auto power off
|
V
|
|
Backlight(9501B)
|
V
|
|
Max display
|
1999
|
General Characteristic
Power supply : 9V(6F 22)
Color : Black + Yellow
Weight : 300g(including batteries)
Dimension : 188*88*39mm
Accessories : Test lead , manual , battery
Standard inner package : Color box
Standard package quality : 40 sets
Outer packing size : 43*32*58cm
Standard packing gross weight : 24.8kg
Features
*3 1/2 digits LCD with a Max. reading of 1999
* Resistance, Capacitance test
*Low voltage indication,overload protection
*Diode, Continuity Buzzer, transistor test
*Auto power off
*Sleep mode

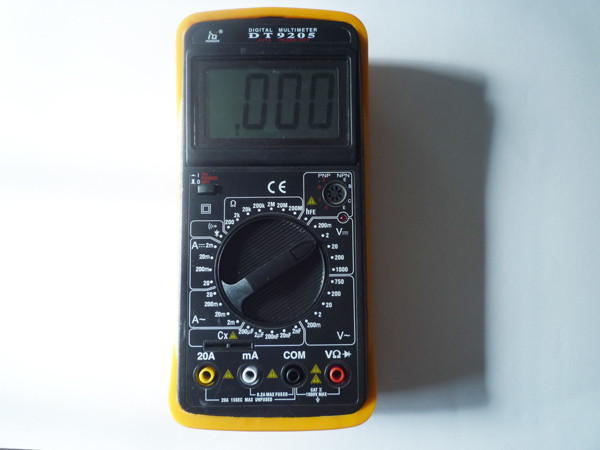

Product Pictures
Product Tags:
|
|

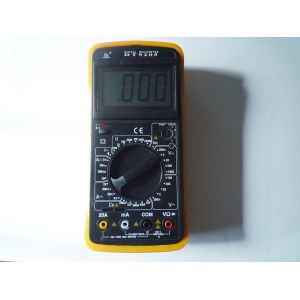

Diode HFE Handheld Portable Digital Multimeter with auto power off Images
|
