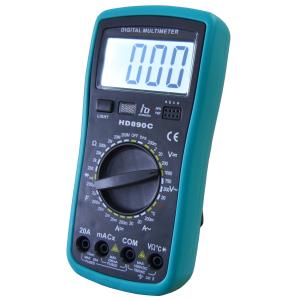

1000V DC DMM USB Digital Multimeter With Fire Wire Test 20nF - 200uF
Quik Details :
Place of Origin : Shenzhen ,China
Model : HD890C
Brand Name : HD , OEM
Measuring Current Range : 200mA-20A
Measuring Voltage Range : 200mV-1000V
Measuring Resistance Range : 200Ω-20MΩ
Capacitance : 20nF -200uF
Weight : 274g
MOQ : 500PCS
Payment : T / T , Paypal , West Union
Description :
HD890C manual measuring-range digital multimeter designs excellent,the appearance is novel and natural .The large liquid crystal screen dresses up the background clearly and cause the demonstration to be artistic .
The function is complete and it is easy to operate.We add new function -Fire Wire Test this year . Besides the triode test , all measurements are surveyed by the multimeter subtus four test inputs jack,namely use the test lead to test.Facilitates your operation and strengthen the security . PTC temperature sensing component is connected within the VW jack input terminus, which has fully protected the key part of the multimeter --Function / range switch and improved security and lengthened the use life-span greatly.
Hongda was founded in 1996,after over 15 years development, now it is a leading digital instruments supplier in China.
Know more about us, please visit our company website at www.szhongda.net
Specification :
|
Basic function
|
Measurement range
|
Basic accuracy
|
|
DC voltage
|
200mV/2V/20V/200V/1000V
|
±(0.5%+3)
|
|
AC voltage
|
20V/200V/750V
|
±(1.0%+3)
|
|
DC current
|
20mA/200mA/20A
|
±(1.5%+2)
|
|
AC current
|
200mA/20A
|
±(2.0%+3)
|
|
Resistance
|
200Ω/2kΩ/20kΩ/200kΩ/20MΩ
|
±(1.0%+5)
|
|
Capacitance
|
20nF/200nF/2uF/200uF |
±(4.0%+3) |
| Fire Wire Test |
V |
|
hFE test
|
V
|
|
Diode test
|
V
|
|
Continuity buzzer
|
V
|
|
Low power display
|
V
|
|
Auto power off
|
V
|
|
Data hold
|
V
|
|
Max display
|
1999
|
General Characteristic :
Power supply : 9V(6F 22)
Color : Ron-Grey + Red
Weight : 274g(including batteries)
Dimension : 182*84*36mm
Accessories : Test lead ,manual ,battery
Standard inner package : Color box
Standard package quality : 60 sets
Outer packing size :43*32*58cm
Standard packing gross weight :23.5kg
Applications :
DMMS is used in electrical measurement to electronic instruments .It can have many special functions , but the main function is to measure voltage , resistance and current.DMMS , as a modern multi-purpose electronic measuring instrument , is mainly used in the physical , electrical , electronic , and other areas of the measurement .
Our Service :
24 hours service.
15 well-educated and experienced staff
4 QC ensure every order made strictly as per clients' requests.
Over 50 factories supported with positive relationship.
